Product Overview

Determine & Quantify Routine & Special Chemistries With Full Traceability & Reliability

The AMS Alliance SAT 450 is a fully automated, random-access clinical analyzer for routine and special chemistries testing, designed to support your laboratory in achieving improved operational efficiency, reducing reruns and manual handling.

The SAT 450 analyzes samples of serum, plasma, urine and other fluids, allowing clinicians to determine and quantify metabolites, electrolytes, proteins and drugs. These results give clinicians critical feedback on toxicology and health conditions, and they rely on the data for helping doctors make the best decisions possible for their patients.

SAT 450’s automation allows maximizing throughput, improves operator’s safety from exposure to biohazards. and minimizes cross-contamination risks.

SAT 450 is specially designed not only for routine biochemical analysis, but its performance and specifications make it an ideal analyzer for special chemistries in combination with larger platforms, those dedicated to routine testing.

Features

  • Handles up to 450 tests per hour
  • Up to 72 reagent positions in a refrigerated compartment
  • 4 removable racks (up to 15 positions each) and 8 peripheral positions for 5 ml containers
  • 80 long life, 6 mm optical path, semi-disposable cuvettes
  • Controls can be loaded on reagent compartments and/or samples compartments

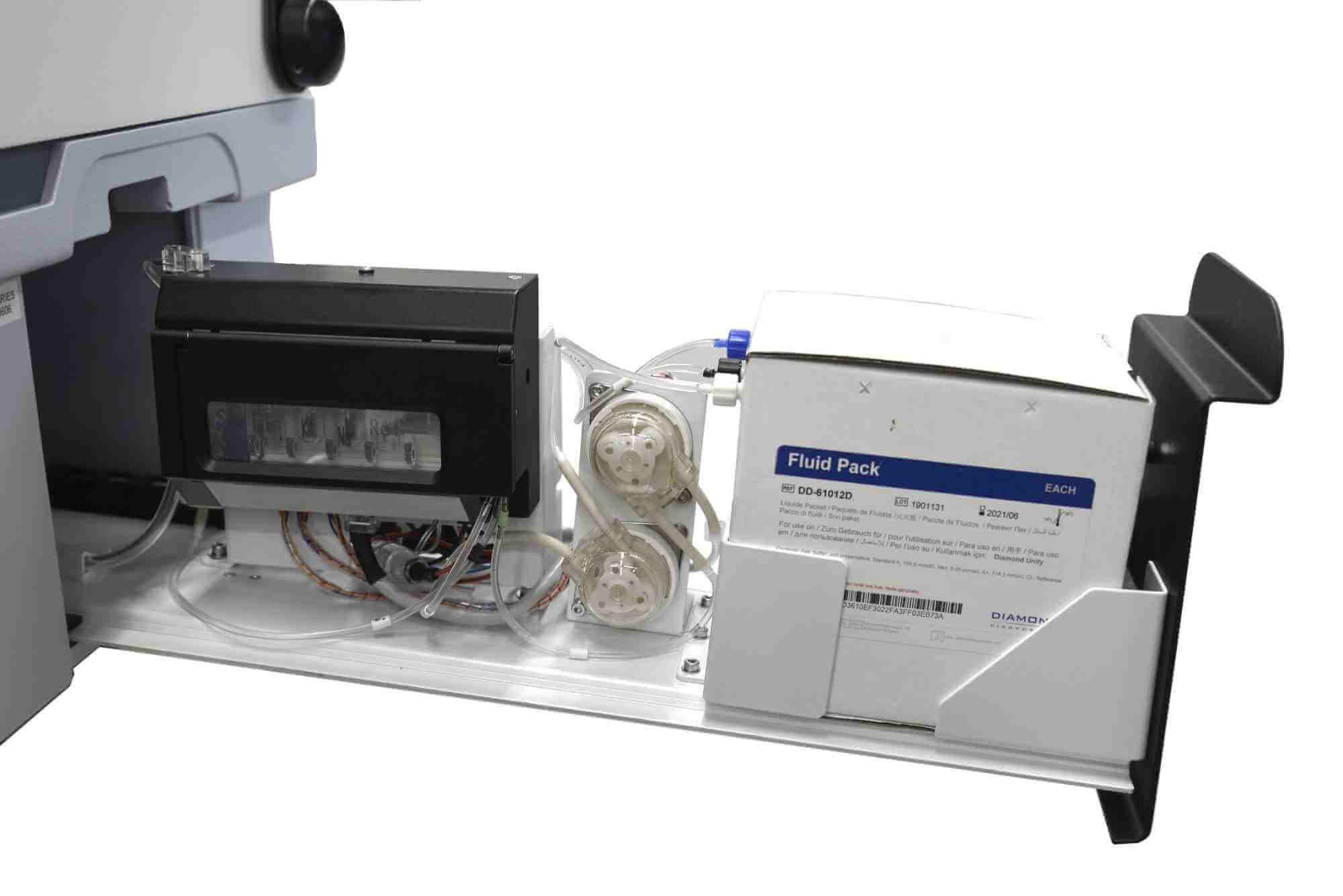

  • Optional ISE module

Benefits

  • Compact and simple operation
  • Optimized sample and reagent mixing
  • Double probe washing between each sampling cycle ensures clean, accurate results
  • Continuous loading saves users time between testing cycles
  • Cost effective with a long life in the field
  • Reagent refrigerated chamber with built-in barcode reader – Reagent inventory management
  • Practical design allows easy access for maintenance purposes by simply lifting up the entire light-weight analytical chassis
Chemical & Clinical

Applications

Ideal for Both Routine & Special Chemistries

  • Clinical chemistry assays
  • Immunoturbidimetric assays
  • Electrolyte assays
  • Drugs of abuse assays


No items found.
No items found.
No items found.
No items found.
Chemical & Clinical

Product Lineup

No items found.
Chemical & Clinical

How it Works

Fully Automated for Maximized Throughput & Improved Operator Safety

The SAT 450 is highly automated and once the parameters are set in the software, the user can monitor testing without hands-on interaction. To operate a test, samples are loaded into the machine and the user programs the required testing. A probe measures a small portion of the sample and places it into a reaction vessel. Reagents are added from the on-board, refrigerated supply. Incubation time is allowed, if required; then ISE testing determines the concentration of analyte. Results are displayed on the software screen for the user.

Chemical & Clinical

System Components

Chemical & Clinical

Chemical & Clinical

Software

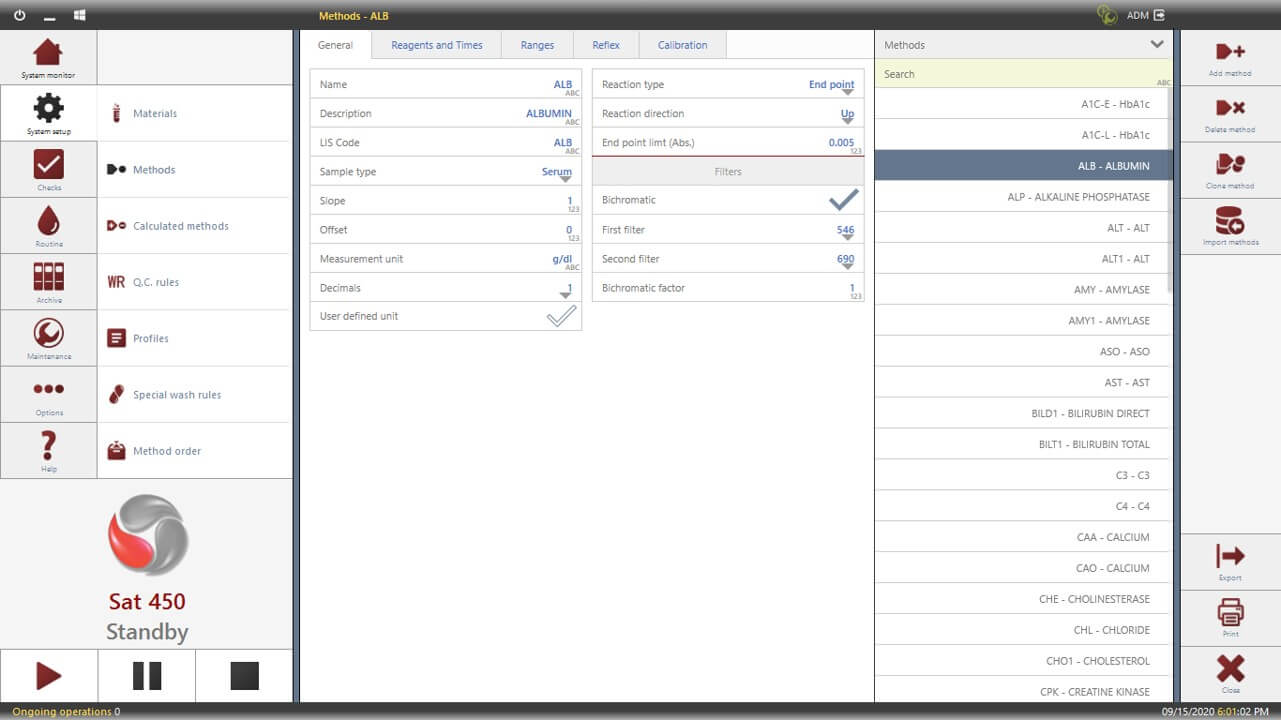

The SAT 450 software simplifies the analysis process and provides the user concise guidance through the operating functions. All parameters and settings are completely user programmable, and up to 999 methods can be stored. To conduct a test run, the user will select all of the testing parameters, including pre-dilution and re-dilution ratios, sample re-run options and reflex tests. When all of the parameters are set, the testing will automatically run, allowing the user to work on other tasks and return when the testing is complete.

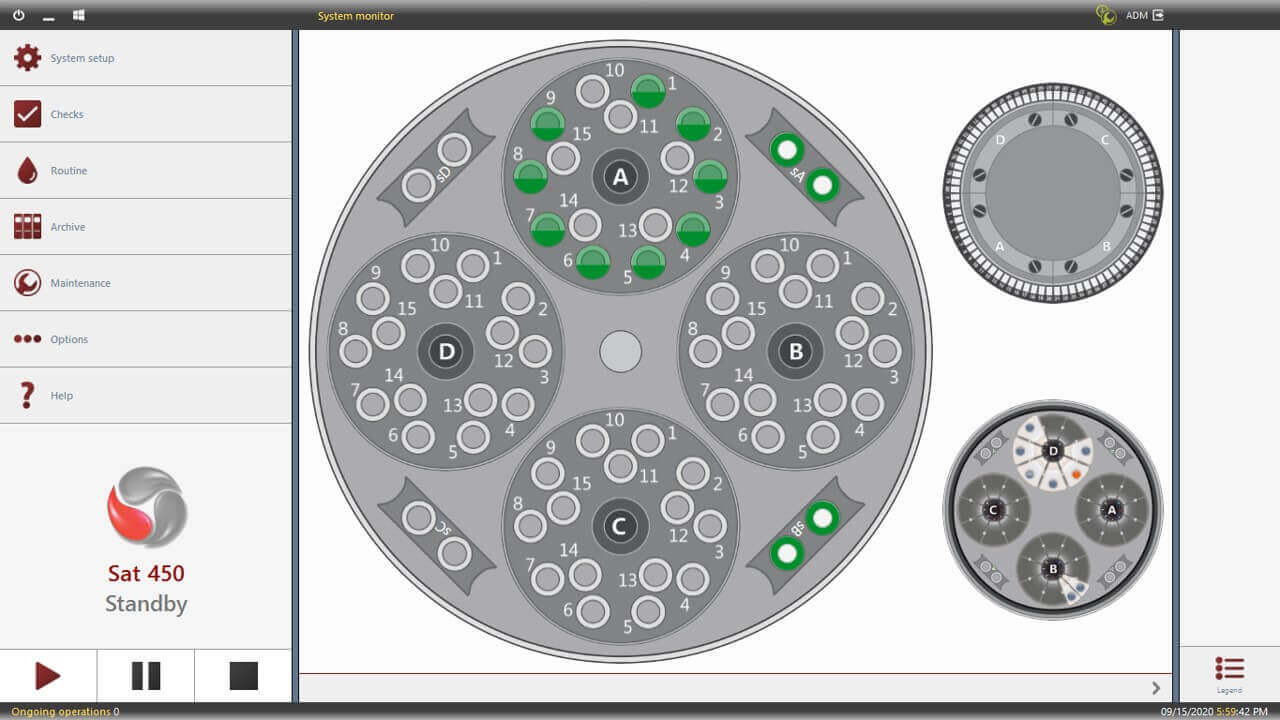

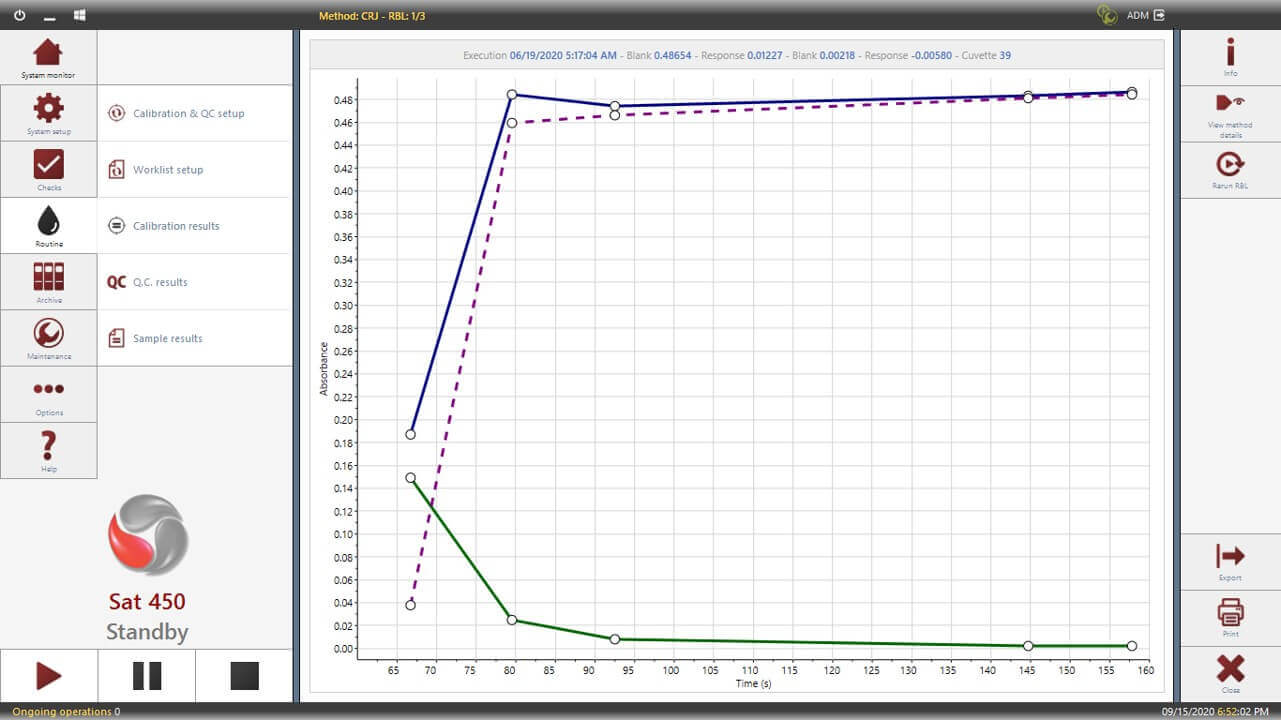

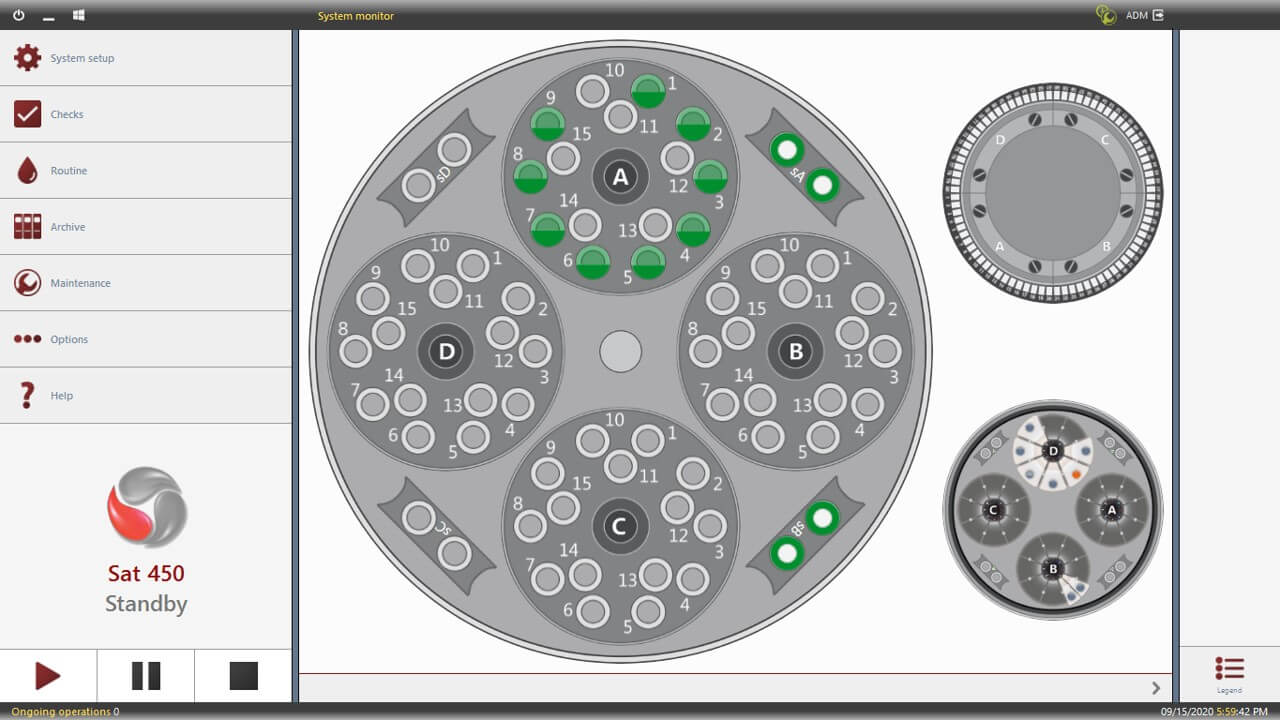

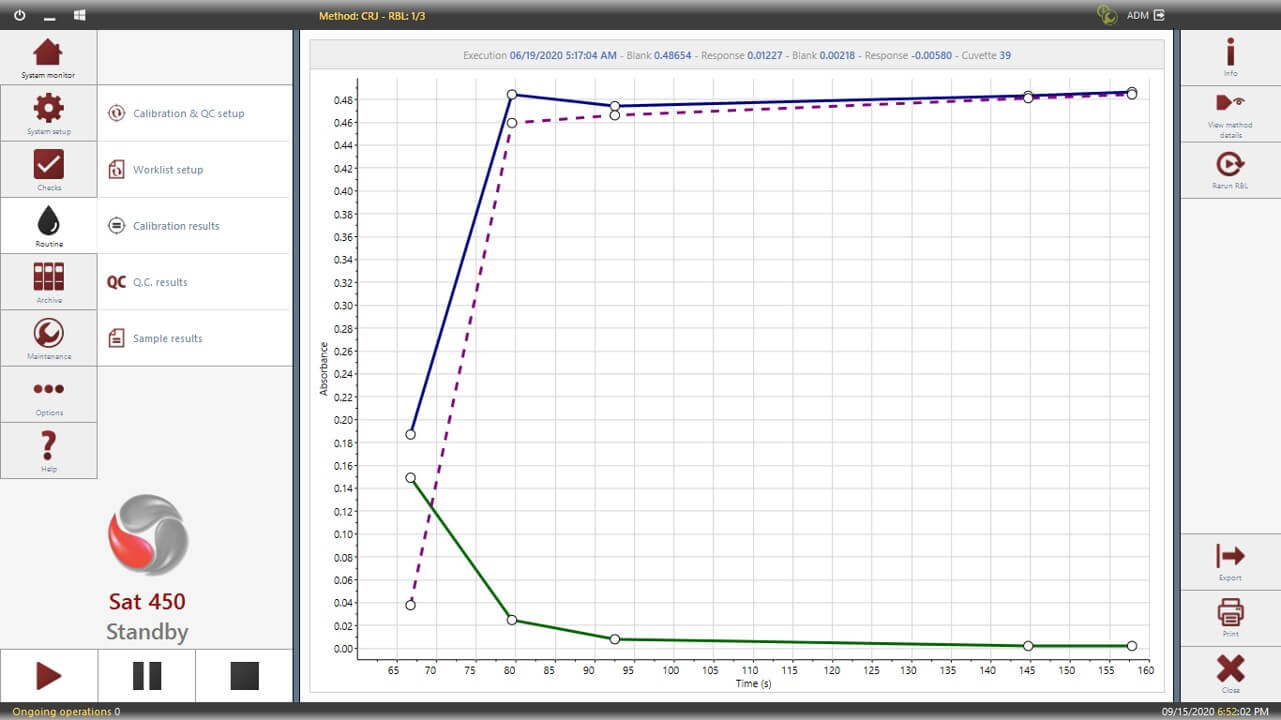

During the testing cycle, the user can view the real time status of samples and reagents, and monitor for error messages, temperature control, and use the STOP, START, or PAUSE functions as needed. Once testing is complete, the test reaction curves, test calibration curves and Levy-Jennings and Youden QC statistics are available in the software.

The SAT 450 software simplifies the analysis process and provides the user concise guidance through the operating functions. All parameters and settings are completely user programmable, and up to 999 methods can be stored. To conduct a test run, the user will select all of the testing parameters, including pre-dilution and re-dilution ratios, sample re-run options and reflex tests. When all of the parameters are set, the testing will automatically run, allowing the user to work on other tasks and return when the testing is complete.

During the testing cycle, the user can view the real time status of samples and reagents, and monitor for error messages, temperature control, and use the STOP, START, or PAUSE functions as needed. Once testing is complete, the test reaction curves, test calibration curves and Levy-Jennings and Youden QC statistics are available in the software.

Additional Software Features:
  • Multi-language files (user programmable)
  • Bi-directional communication compliant with ASTM and CLSI standard
  • Automatic transmission of patient data and results through serial port or Ethernet
  • Reagents data traceability and management
  • Westgard rules management
  • Sampling order with priority management
  • Possibility to compare current calibration with any previous calibration
  • Preventive maintenance management

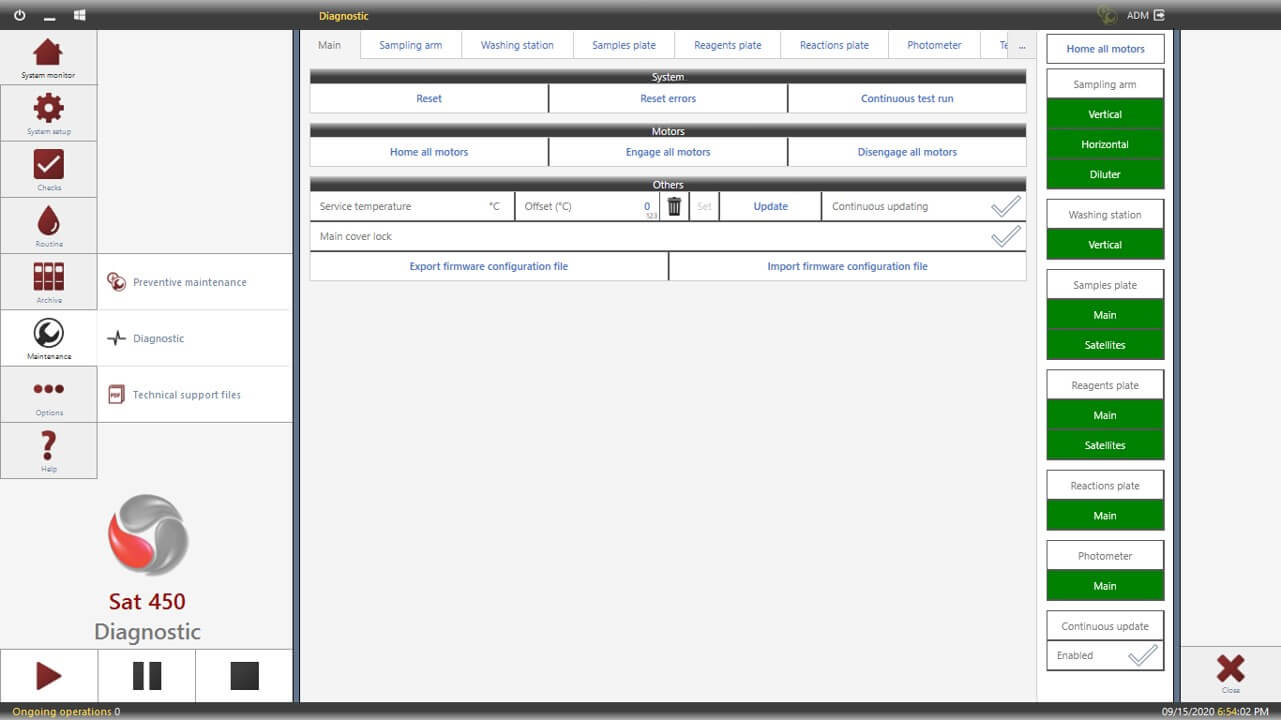

  • Remote diagnostic capability
  • Automatic startup and automatic shutdown procedures
Additional Software Features:
  • Multi-language files (user programmable)
  • Bi-directional communication compliant with ASTM and CLSI standard
  • Automatic transmission of patient data and results through serial port or Ethernet
  • Reagents data traceability and management
  • Westgard rules management
  • Sampling order with priority management
  • Possibility to compare current calibration with any previous calibration
  • Preventive maintenance management
  • Remote diagnostic capability
  • Automatic startup and automatic shutdown procedures
Chemical & Clinical

Specifications

Assay Types End point, Kinetic, Differential, Dichromatic, Fixed Time and Immunoturbidimetric up to 999 Tests, All User Programmable
On-Board Reagents Up to 72 Reagents Cab Be Located into the Refrigerated Compartment and Distributed on:
- 4 Removable Racks
- 50/20/5 ml Containers Can Be Loaded
- 8 Extra Positions for 5 ml Containers
Sample Loading - 4 Universal Separate Racks for Continuous Loading of Samples, Calibrators and Controls Thanks To A Dedicated Lid (New Main Cover Design)
- Each Rack Contains Up To 15 Cups and/or Tubes 10-16 mm Diam., 40-100 mm Height
- 8 Extra Positions for Urgent Samples, Calibrators and Controls
- STAT Sample Execution Is Allowed At Any Time
Throughput - 280 Photometric Tests/Hour + 160 ISE/Hour
- Up To 440 Tests/Hour (280 Photometric Tests/Hour + 160 ISE/Hour)
Reading System - Direct Reading, Dual Channel Photometer
- 200 L Minimum Reading Volume
- 9 Narrow Band, Automatically Selected Interferential Filters 340, 380, 405, 492, 510, 546, 577, 620, 690
- Halogen Lamp 6V/10W
- Linear From 0.0001 To 4.200 Abs
- High Resolution (0.0005 Abs.)
Sampling Process One Mechanical Arm Performs All Sampling Operations With:
- Level Sensing System (Capacitive)
- New Sampling Probe With Shock Sensor
- New Reagent Pre-Warming System At 37°C
- Automatic Probe Washing
- Sample Volume Range: 2.0μl÷ 99μl (0.25μl Incr.)
- Reagents Volume Range: 0μl÷ 350μl (1μl Incr.)
- Sample Pre-Dilution
- Sample Post-Dilution
- Sample Post-Concentration
Reaction Plate Holds 80 Cuvettes Divided Into 4 Racks With 20 Cuvettes Each and Performs the Following Operations: - Automatic Cuvettes Washing
- Continuous Monitoring Of Cuvettes Quality
- Incubation Temperature Control At 37°C ± 0.3
Computer (min requirements) CPU I3 Series 9 (Or Higher)
- Memory Ram 8 Gb
- Hard Disk 250 Gb
- Monitor 17“
- Communication USB and/or RS232 Port
- Host Communication RS232 Or Ethernet
- Software Windows 10 Or Higher
Installation Requirements - Power Supply 90 ÷ 250 VAC, 47 ÷ 63 Hz
- Electric Consumption 386 Watt
- Water Consumption 1.8 L/H (61 fl oz)
Dimensions 107 W x 68 D x 53 H cm (42 x 27 x 21 in)
Weight 49 Kg (108 lbs) - Degree of pollution as per EN 61010: 2
- Installation category as per EN 61010: II (surge category)
Environment - Room Temperature 18°C - 30°C (65°F - 86°F)
- Relative Humidity 20% - 85%
