SmartChem® 210 Automated Discrete Analyzer
Multi-Parametric Analysis of 300 Tests per Hour
The AMS Alliance SmartChem® 210 is a fully automated, wet chemistry direct read, discrete analyzer for photometric analysis. This benchtop instrument offers a throughput of up to 300 tests per hour with optional Nitrate sample preparation modules. It can load up to 60 samples, controls and calibrators and up to 32 different reagents.
Together with its intuitive and easy to learn software platform, SmartChem® 210 provides full flexibility and power to increase the productivity in your laboratory.
When paired with the optional samples and reagent barcode readers and ready-to-use reagents, the instrument operation is simplified and does solely require to program the instrument's work routine, reducing hands-on operation and any possibility of human error.
See how SmartChem® is being used in the scientific community:
National Center for Biotechnology Information: https://www.ncbi.nlm.nih.gov/pmc/?term=smartchem
Google Scholar: https://scholar.google.com/scholar?hl=en&as_sdt=0%2C5&q=smartchem+ams+alliance&btnG=
Features
- Extensive physical chemical analysis of drinking water, wastewater, and soil samples
- Multi-parametric (consolidation) automated platform
- Photometric analysis
- Automated integrated reagents and samples barcode reader (optional)
- Automated start-up to instrument readiness
- Low water consumption
- IF THEN driven test sequences
- Programmable and monitored cuvette wash module
- Reagent inventory system and liquid level sensing
- Nitrate add-on module available
- Available ready-to-use reagents for diverse methods
Benefits
- Increased efficiency and productivity through instrument consolidation and testing automation. Free-up your staff from tedious and repetitive tasks.
- Microliter reactions - Reduced reagent usage and waste generation – improved cost efficiency and environmental footprint.
- Guaranteed stability, reproducibility and traceability with our ready-to-use dedicated reagents.
- Improved automation level with our optional bar code readers for reagents and samples – allowing full LIMS integration.
- Automated out-of-range retesting decision making.
- Cost end environmental efficiency via our Cuvette Monitored Wash Cycle.
- Optimization of time-consuming techniques.
Applications
Its applications include, but are not limited to:
- Water and environmental
- Soil extracts, plant extracts, and fertilizers
- Food and feed
- Beverages, wine and beer
- Chemical
See our list of test parameters by sub-segment here. (not limited)
Product Lineup
SmartChem® 210
- Up to 300 tests/hour
- Benchtop analyzer
- Sample Loading:
- ~Up to 60 samples on board
- ~4 removable racks of 15 positions each for continuous loading of samples
- On-board reagents:
- ~Up to 32 reagents
- ~4 removable racks of 8 positions each
How it Works
A True Discrete, Direct Read Measurement System
The SmartChem® 210 uses direct read photometry, utilizing a true discrete, direct read measurement system and reusable, high-purity optical cuvettes, eliminating compromised sample measurement.

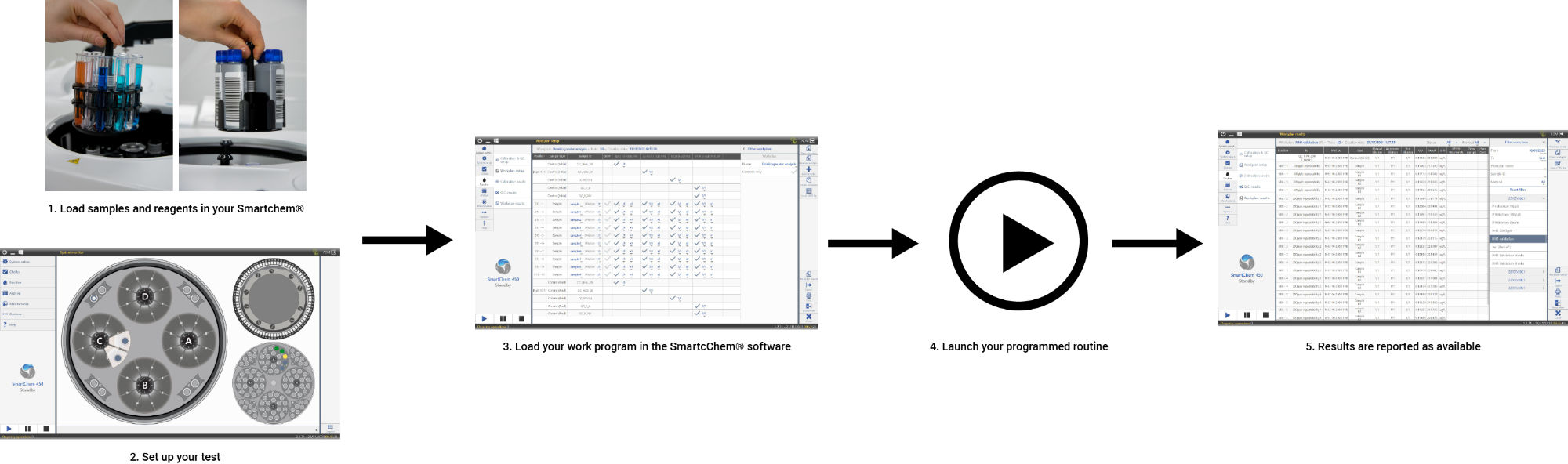

SmartChem® simplifies your laboratory's work in a short series of steps:
- Load samples and reagents in your SmartChem®
- Set up your test
- Load your work program in the SmartChem® software
- Launch your programmed routine
- Get the results

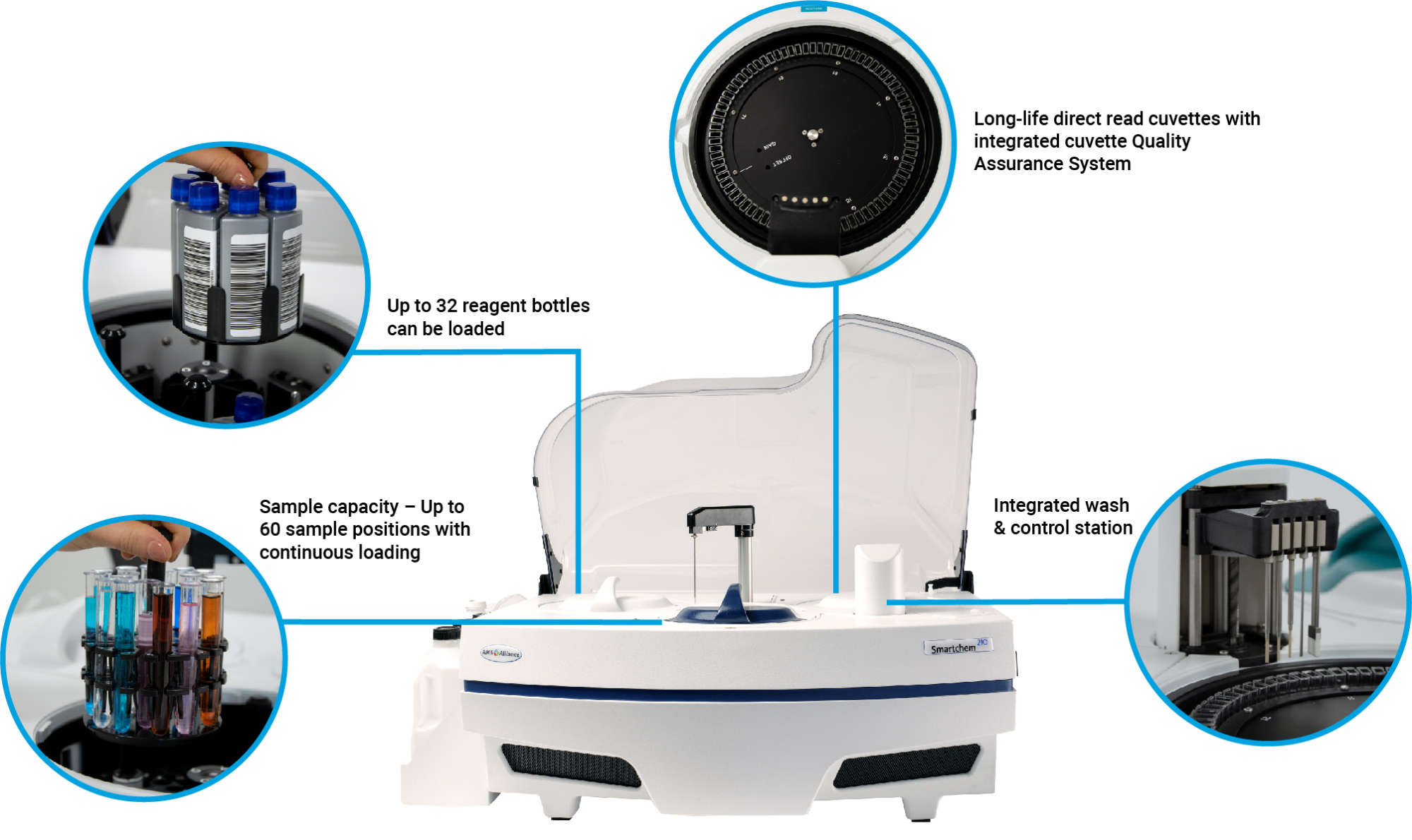

System Components
The SmartChem® 210 is supplied with a set of 12 wavelength filters, ranging from 340 – 880 nm, allowing 9 to be mounted on board simultaneously; this allows for visible spectrum photometry.
Up to 32 reagent bottles can be loaded.
Sample capacity – Up to 60 sample positions with continuous loading.
System Configurations
The instrument is modular allowing you to configure your analyzer:
| NOx Reduction Module | Barcode Readers | |
|---|---|---|
| SmartChem® 210 |  |
Optional: Reagents and Samples |

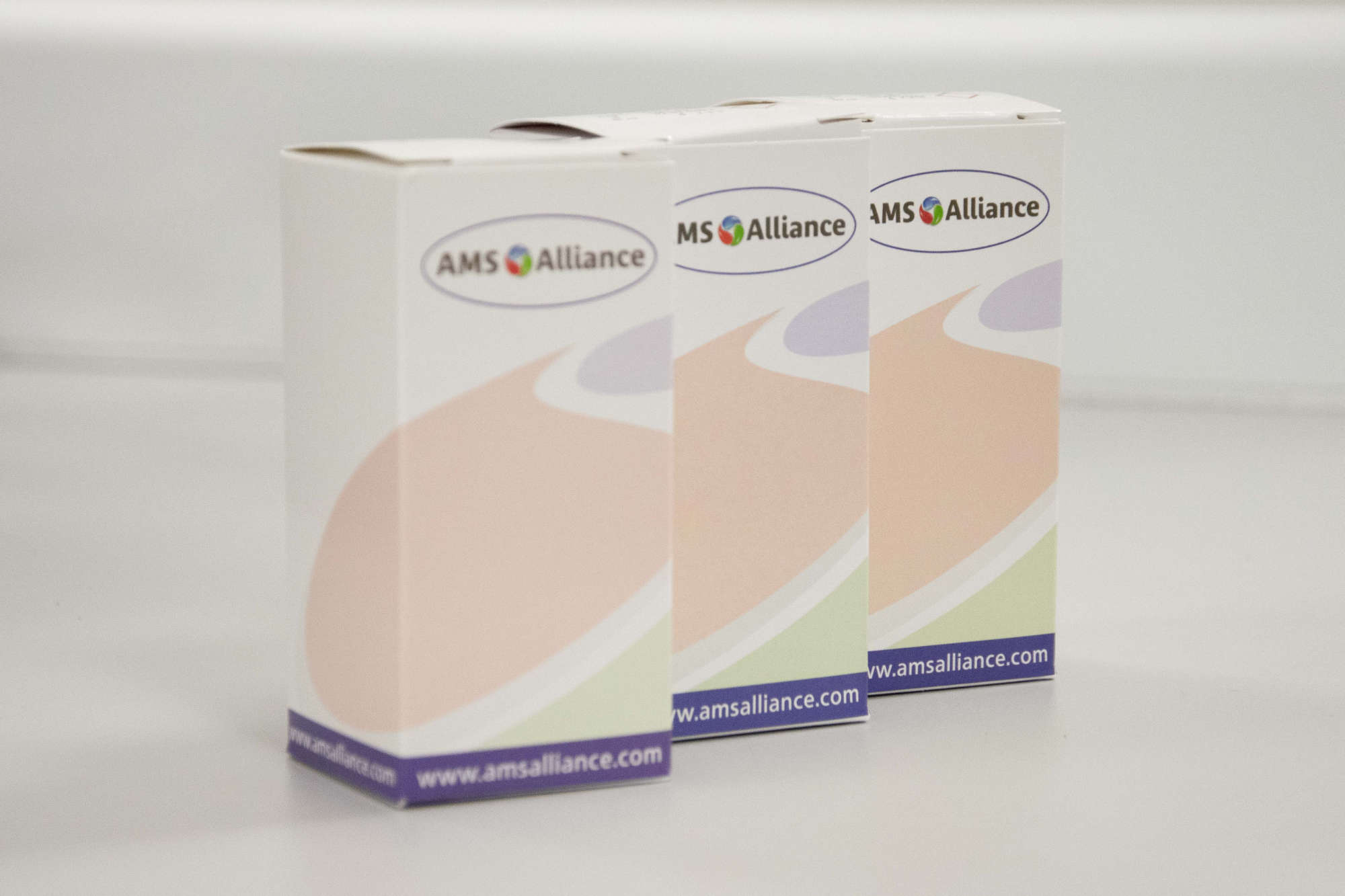

Reagents
Ready to Use Reagents
We offer a full range of enzymatic and colorimetric reagents dedicated to our SmartChem® range of discrete analyzers.
Developed, tested and validated by our application laboratory, they guarantee perfect stability and reproducibility of your analyses.
Very easy to use, they are liquid, supplied in specific bottles made for SmartChem®, and automatically detected by the barcode reader (optional). This ready-to-go solution simplifies the preparation of your analysis and facilitates the use and storage of reagents. It also secures your analyses with reagents adapted to your application and your instrument.
To order reagents, please send an email to orders@kpmanalytics.com.
Software
The SmartChem® 210 analyzer’s operation is completely computer based with the dedicated, intuitive and user-friendly software. This software is bidirectional LIMS and NELAC/EPA or NELAC-EPA compliant.
SmartChem® software simplifies routine work and allows complete control and operation of the analyzer to the operator controlling the on-board reagent stock, samples, controls and calibrators, plus the status of the cuvettes in the reaction chamber.
The SmartChem® 210 analyzer’s operation is completely computer based with the dedicated, intuitive and user-friendly software. This software is bidirectional LIMS and NELAC/EPA or NELAC-EPA compliant.
SmartChem® software simplifies routine work and allows complete control and operation of the analyzer to the operator controlling the on-board reagent stock, samples, controls and calibrators, plus the status of the cuvettes in the reaction chamber.

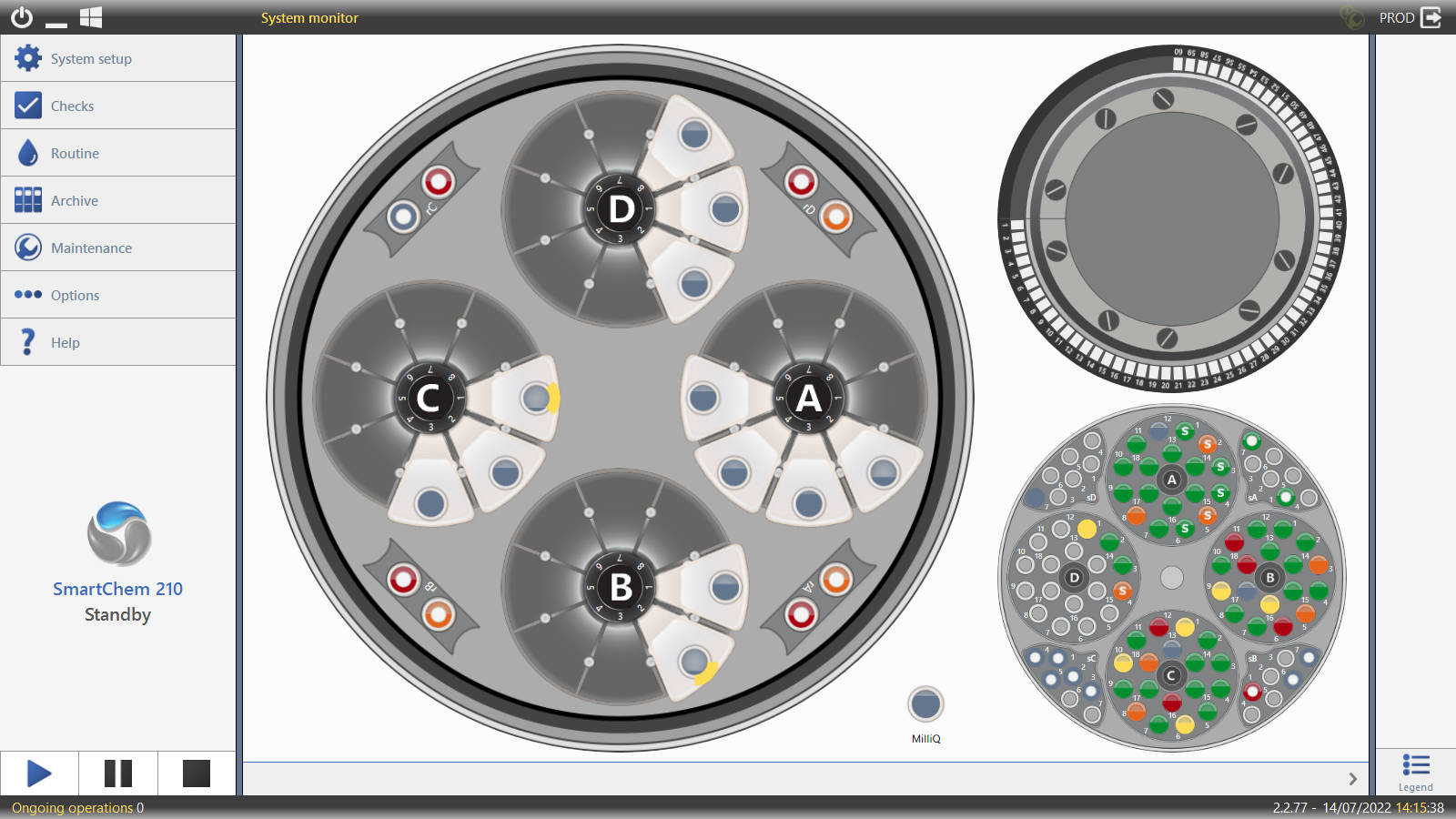

System Monitor
SmartChem® 210 software simplifies routine work and allows complete control and operation of the analyzer to the operator controlling the on-board reagent stock, samples, controls and calibrators, plus the status of the cuvettes in the reaction chamber. Users, depending on the privileges defined by theSystem Administrator, can have access to two different displays: “OperatorView” and “Advanced View”.
System Monitor
SmartChem® 210 software simplifies routine work and allows complete control and operation of the analyzer to the operator controlling the on-board reagent stock, samples, controls and calibrators, plus the status of the cuvettes in the reaction chamber. Users, depending on the privileges defined by theSystem Administrator, can have access to two different displays: “OperatorView” and “Advanced View”.

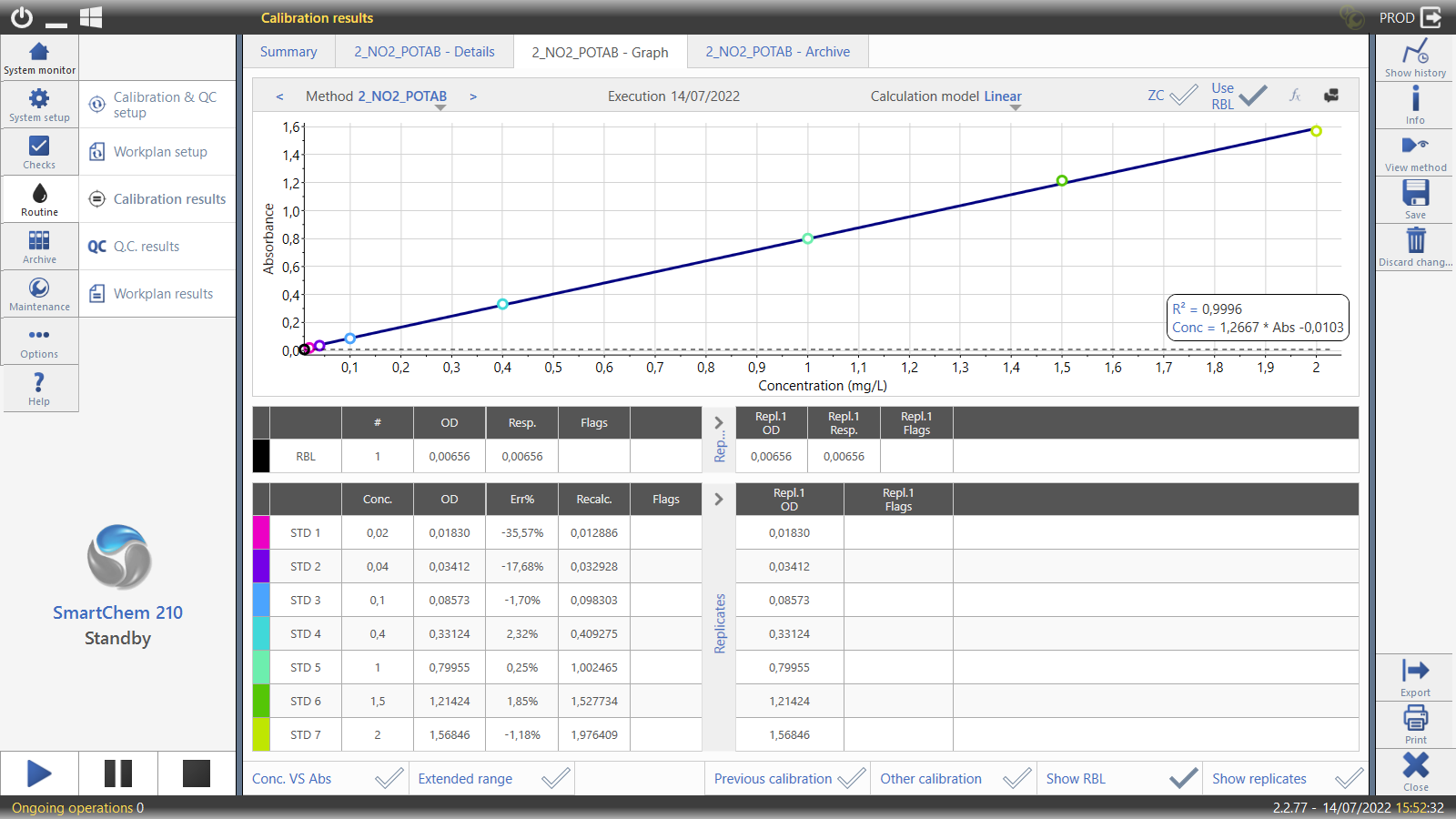

Calibration Curve
Operators can access calibration status, use curves and historic calibration data, as well as monitor the status of specific tests, reaction curves and other on-going testing data.
Calibration Curve
Operators can access calibration status, use curves and historic calibration data, as well as monitor the status of specific tests, reaction curves and other on-going testing data.

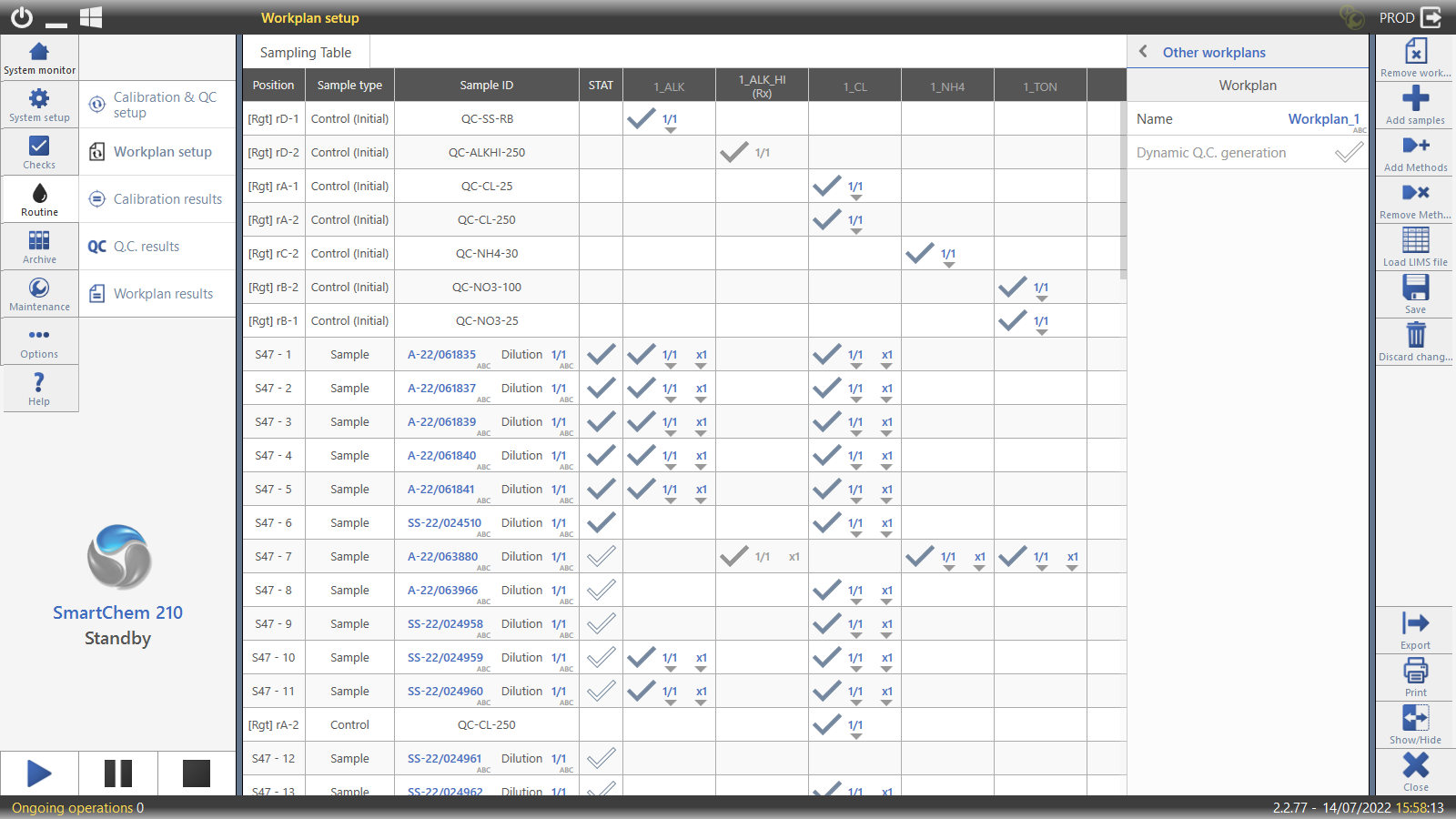

Workplan Setup
The operator can easily load reagents and samples using the optional SmartChem® barcode reader and design the work routine for the analyzer to run, defining tests to run per sample, calibrations, and QC controls, etc.
Reflex and re-tests IF-THEN instances can be programmed, allowing specific actions to be automated in case of out-of-range results and/or any instances defined by the testing routine being defined by the laboratory.
Workplan Setup
The operator can easily load reagents and samples using the optional SmartChem® barcode reader and design the work routine for the analyzer to run, defining tests to run per sample, calibrations, and QC controls, etc.
Reflex and re-tests IF-THEN instances can be programmed, allowing specific actions to be automated in case of out-of-range results and/or any instances defined by the testing routine being defined by the laboratory.
Ongoing Analysis
The operator can, at any moment, see the status of each sample, reagent content per bottle and other information during the programmed run, plus enter new reagents and samples while the unit is running an already launched program.
Ongoing Analysis
The operator can, at any moment, see the status of each sample, reagent content per bottle and other information during the programmed run, plus enter new reagents and samples while the unit is running an already launched program.
Workplan Results
During and at the end of the routine, the operator can access the tests reports and results.
Workplan Results
During and at the end of the routine, the operator can access the tests reports and results.

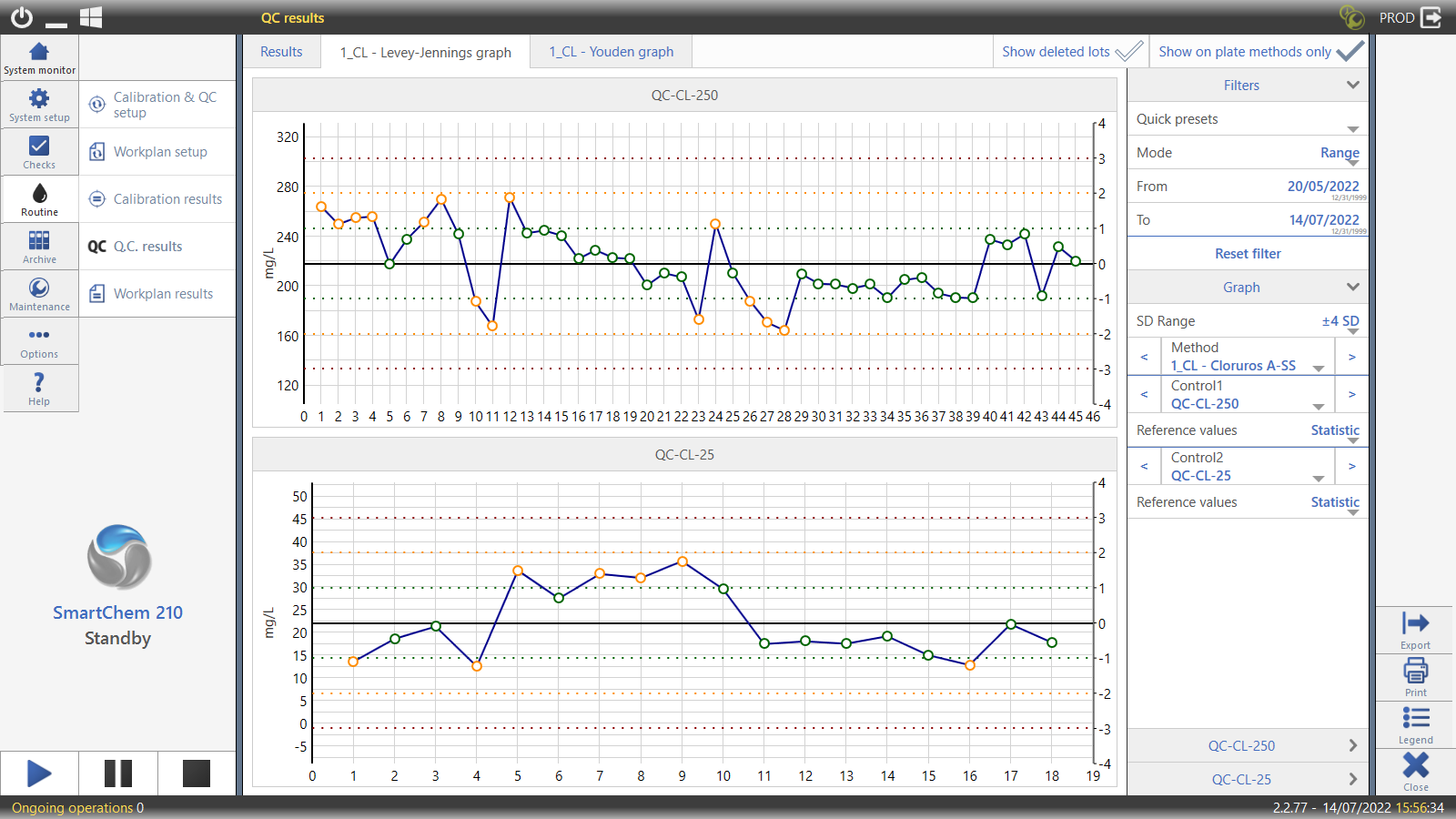

Levey-Jennings Plots
Quality controls can be evaluated via Levey-Jennings plots and results from the run can also be validated.
Levey-Jennings Plots
Quality controls can be evaluated via Levey-Jennings plots and results from the run can also be validated.
Additional Software Features
- Two available user configurations: Advanced View, allowing the user to see (and depending on privilege settings) interact with all functions available on the SmartChem® Pro Software; and Operator View, limiting the available functions to the ones used for routine work.
- In-app support for troubleshooting with an advanced media library of help documentation, and generation of an error report (System Help File page)
- Automatic start-up: including calibrations and blanks
- Automatic shutdown
- Barcode for reagents: auto ID and loading with Ready to Use reagents
- Barcode for samples: auto ID – automated work routine loading with LIMS
- Addition of new sample or method to a sample during the run
- Retest key
- Accurate time to test completion information
- Calibration points recalculation
- Last accepted calibration overlay
- Pre-dilution
- Standard curves
- Computer controlled micro pipettor
- NELAC - EPA compliant
- Real-time information on sample and reagent status
- Dynamic monitoring of test run
Additional Software Features
- Two available user configurations: Advanced View, allowing the user to see (and depending on privilege settings) interact with all functions available on the SmartChem® Pro Software; and Operator View, limiting the available functions to the ones used for routine work.
- In-app support for troubleshooting with an advanced media library of help documentation, and generation of an error report (System Help File page)
- Automatic start-up: including calibrations and blanks
- Automatic shutdown
- Barcode for reagents: auto ID and loading with Ready to Use reagents
- Barcode for samples: auto ID – automated work routine loading with LIMS
- Addition of new sample or method to a sample during the run
- Retest key
- Accurate time to test completion information
- Calibration points recalculation
- Last accepted calibration overlay
- Pre-dilution
- Standard curves
- Computer controlled micro pipettor
- NELAC - EPA compliant
- Real-time information on sample and reagent status
- Dynamic monitoring of test run
