MCT560 Premium-Online-NIR-Feuchte- und Temperatursensor für die Industrie

MCT560 Premium

Industriell Online-NIR-Feuchtigkeits- und Fellgewichtssensor

The MCT560 provides via NIR-technology, which is wide extended and accepted in various branches for feuchtigkeits- and other online measurements. Mehrere der weltweit größten Fertigungsunternehmen verwenden MCT560 Online-NIR-Sensoren. The sensors help the operator, control the feuchtigkeit innerhalb eines Zehntels eines Prozents um die Produktspezifikationen jedes Mal zu erfüllen.

Überblick über das Produkt

Schnelle und genaue Messung von Feuchtigkeit, Öl und anderen Parametern

Leistungen

  • Improve the process control and the end quality by precise measurements of feuchtigkeit, oil and other parameters
  • Treffe with the analysis data fast decisions and anpassungen on the production line
  • Spare the costs and reduce you verschwendung, was das Geschäftsergebnis Ihres Unternehmens verbessert

Funktionen

  • The high speed measurement allows the erfassung of bis zu 99 messwerte per second
  • Robustes Gehäuse hält raue Bedingungen aufrecht; die IP67-zertifizierte Benutzerschnittstelle schützt in anspruchsvollen Betriebsumgebungen
  • Einfach zu bedienen, zu integrieren und über mehrere Linien hinweg zu standardisieren
  • Eigener temperaturgesteuerter Detektor gewährleistet Messstabilität
  • Vollständig modular, alle Komponenten sind vor Ort leicht austauschbar
  • Simple error behebung with progress on board diagnostics

Anwendungen

Gleichbleibende Produktqualität, höhere Ausbeute und weniger Abfall

NIR-Anwendungen für industrielle Prozesse

The MCT560 Online NIR Smart Sensor is used for continuous measurement and control of feuchtigkeit, shift weight, film thickness and product temperature during the manufacturing process. The sensors are in the position, the band speed, the return of paper and other processes, with the pressure changes are controlled, in a closed regular circle. The MCT560 series can also easily are integrated in existing control systems with industrial standard I/O protocols, which are added data to maximum the process efficiency. Einige Beispiele für Industrieprodukte, die gemessen werden können, sind:

  • Chemicals and chemical powder
  • Heiße Schmelzen
  • Druckempfindliche Klebstoffe
  • Extrudierte Kunststoffe
  • Gipspulver
  • Ziegelsteine
  • PVB-Folien
  • Textiles
  • Krümelgummi
  • Kunststoff-Pellets
  • Glasscherbe
  • Sand und
  • Aggregat
  • PVC-Pulver
  • Ceramics
  • Düngemittel
  • Zellstoffplatten
  • Papier
  • Reinigungsmittel und Seifen
  • Mineralischer oder
  • Metallisches Erz
  • Schießpulver
  • Biokraftstoffe
  • Tabak
  • Holz
  • gewellt
  • Materialien
  • Food Packages and containers
  • Panel and Spanplatte
  • Dachschindeln
Keine Artikel gefunden.
Keine Artikel gefunden.
Keine Artikel gefunden.
Keine Artikel gefunden.

So funktioniert's

Control the feuchtigkeit on a zehntel of a percent

The NIR-Analysators of the series MCT560 are integrated in important areas of a production process, to control input rohstoffe continuous or processes in the production line. Jede Option ist so konzipiert, dass sie nahtlos in Förderbänder, Schneckenförderer oder Behälter und Schächte integriert werden können, um Feuchtigkeit, Öl und andere Online-Messungen zu analysieren.

The MCT560 scan vorgang is easy, but reliable:
  1. The light of the lamp is led by a rotierend wheel with 2000 u/min (to 6000 U/min), the NIR filter contains, which were selected for the application
  2. NIR-Licht wird auf das zu messende Produkt gerichtet.
  3. The product reflective light is detected by a mirror in the unit and focus on a peltier kühlbleisulfid detector.
  4. The output of the Detectors is entered by the integrated „intelligent“ lead plate and compared with the internal reference strahl. This value is then in a percent set of feuchtigkeit, oil and other parameters.

Systemkomponenten

Installation

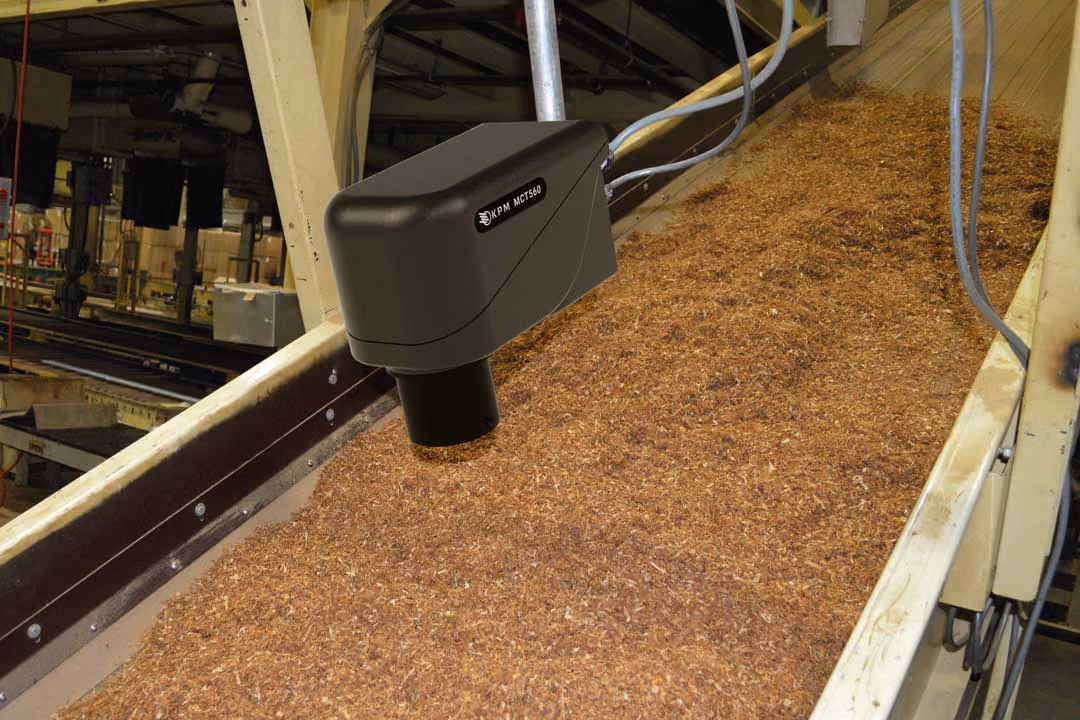

Überbandförderer

Die MCT560-Sensoren werden 200-450 mm (8-18 Zoll) über dem Förderband montiert, idealerweise mit kontinuierlichem Produktfluss.

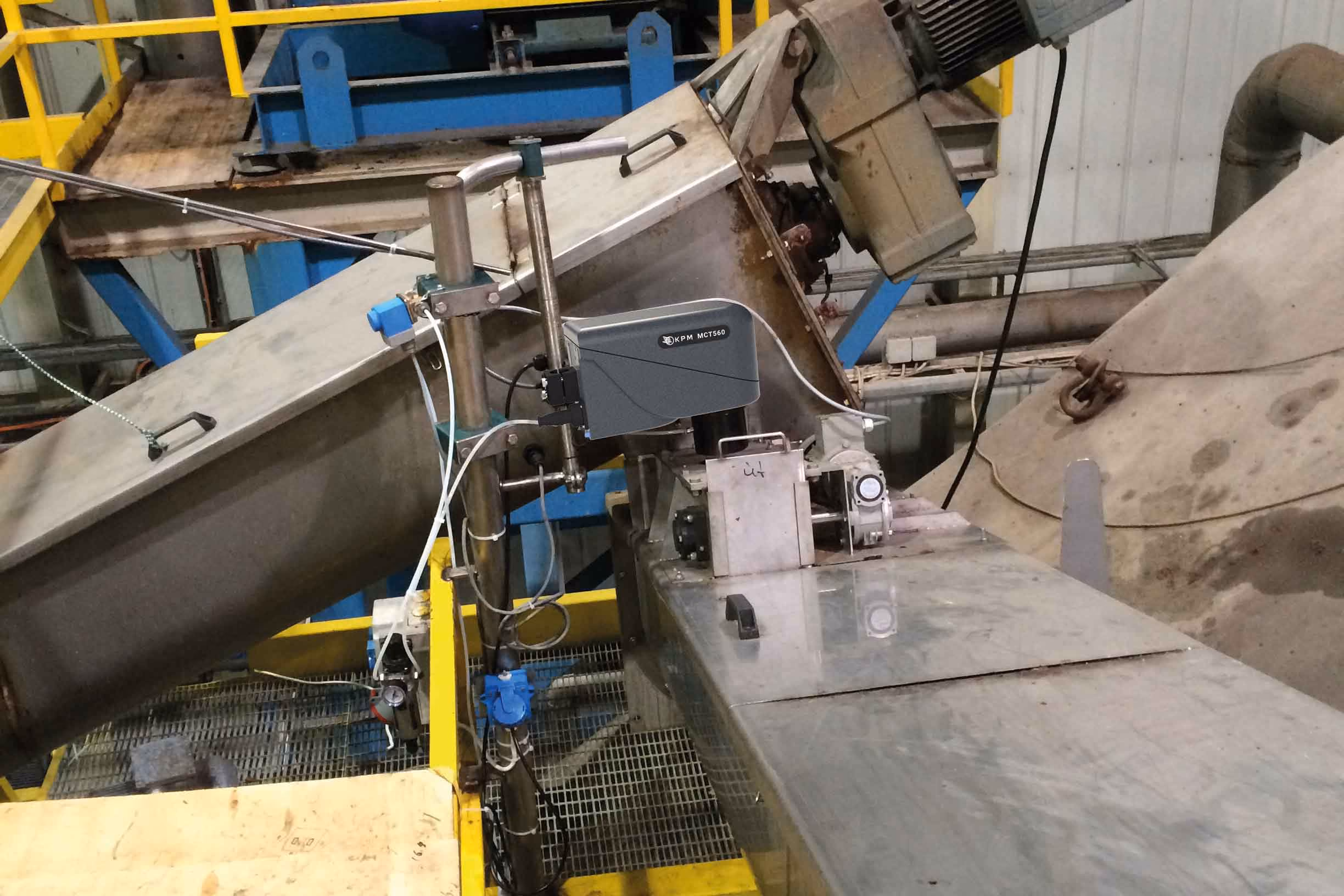

Schnecken und Schneckenförderer

Die Installation des MCT560 auf Förderschnecken und Förderschnecken ermöglicht die Messung des Materialflusses, der durch die Schneckenbewegungen gefördert wird. Der MCT560 ist versetzt zur Seite der Zentralwelle installiert, während der Einfluss der Flüge, die das Gerät passieren, durch die Software des Geräts eliminiert wird.

Behälter und Rutschen

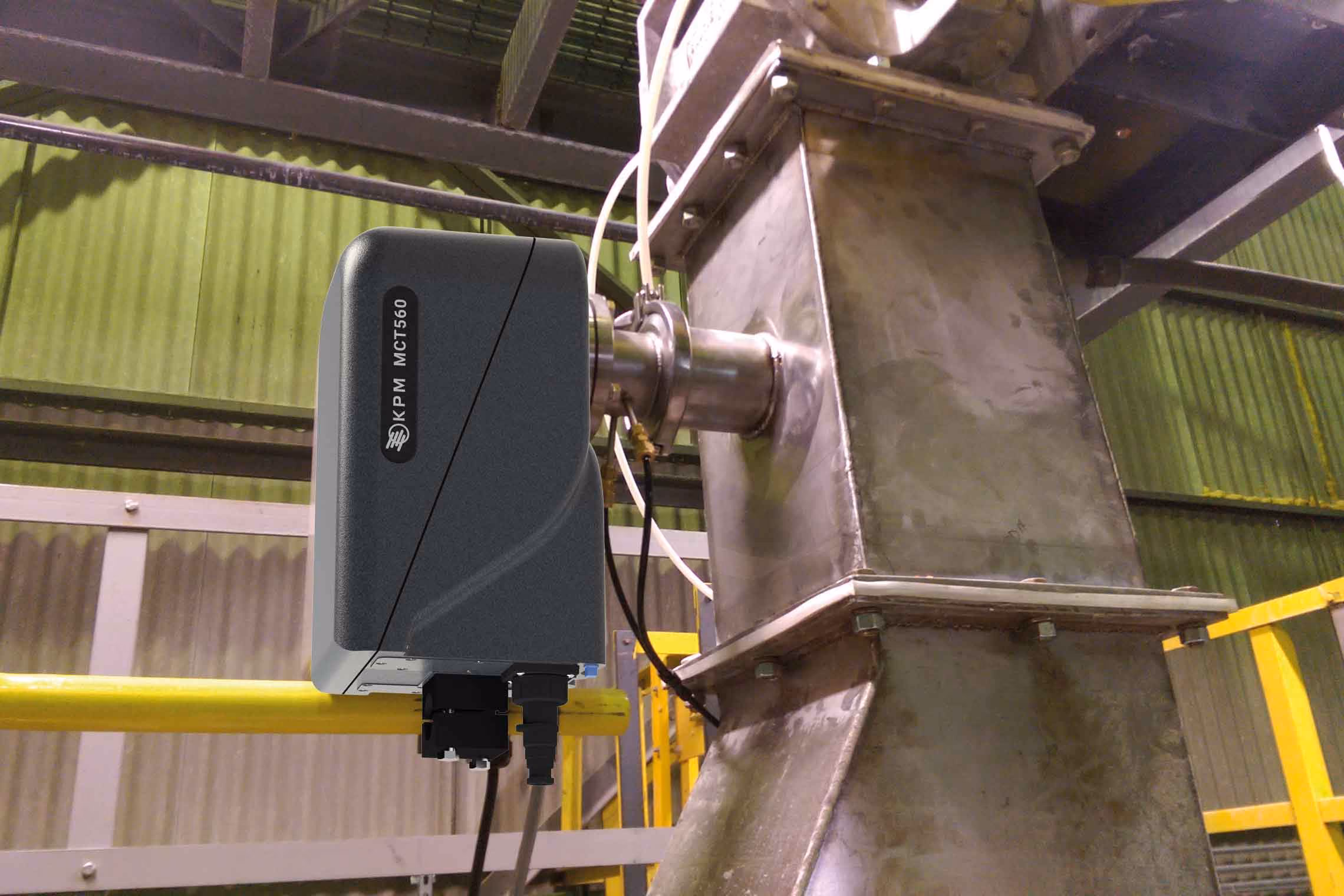

Sichtglasfenster wie Sapphire können verwendet werden, um Produkte kontinuierlich gegen das Fenster fließen zu lassen. Zusätzlich kann der Schnorchelprobenehmer (separat erhältlich) verwendet werden, um frei fallende Pulver/Granulate in Rutschen zu messen.

Keine Artikel gefunden.


Zubehor

Available accessories
  • IR-Temperatursensor
  • Sensor for product loss
  • Rufen Sie Check Standard an
  • Schnorchelprobenehmer
  • Air Cooling
  • Air Spülung
Keine Artikel gefunden.

Software

All MCT Series models use the proprietary SensorVu Windows®- based PC software, allowing operators to insert set-up parameters, perform or adjust calibrations, select product codes, examine internal diagnostic values, and remotely view moisture and temperature trends. SensorVu can also connect to multiple MCT Series analyzers in a single location for multi-system monitoring.

All MCT Series models use the proprietary SensorVu Windows®- based PC software, allowing operators to insert set-up parameters, perform or adjust calibrations, select product codes, examine internal diagnostic values, and remotely view moisture and temperature trends. SensorVu can also connect to multiple MCT Series analyzers in a single location for multi-system monitoring.

Trend screen with logging capability displays process reading changes in real time.

Trend screen with logging capability displays process reading changes in real time.

Review sensor health and performance from easy-to-follow prompts.

Review sensor health and performance from easy-to-follow prompts.

Simple, graphical calibration routine for quick setup of new products.

Simple, graphical calibration routine for quick setup of new products.

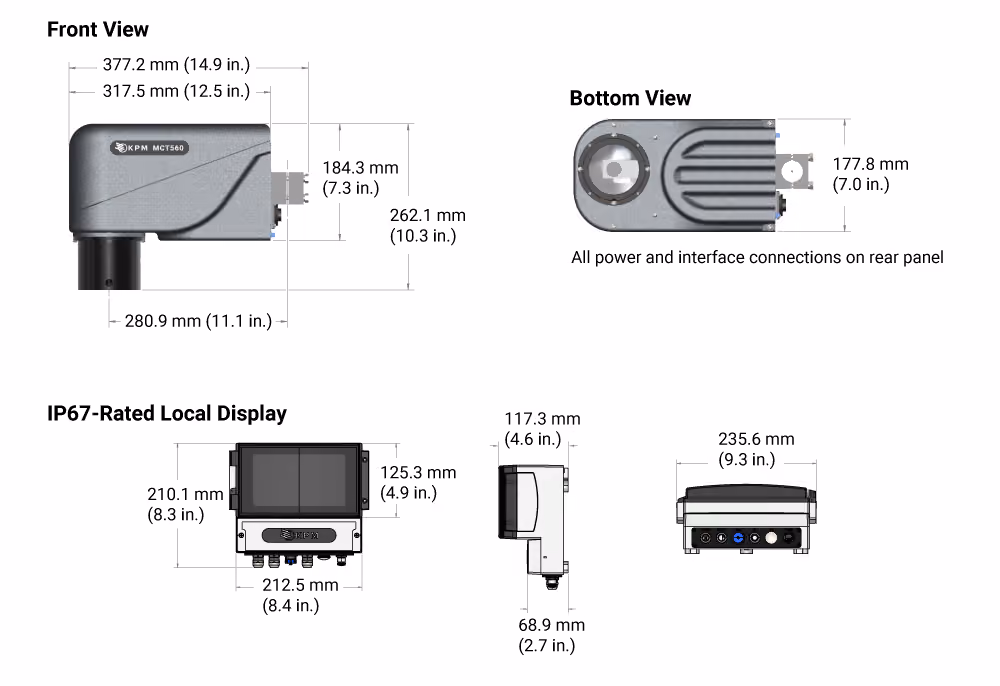

Spezifikationen

Sensor enclosure Powder-coated cast aluminum
Reading speed Up to 99 readings/second
Communication Options USB, Ethernet TCP/IP, Ethernet IP, EtherCAT, ProfiNet, ProfiBus, Modbus TCP, DeviceNet, OPC-DDE Server
Advanced features Lamp life monitoring, motor life monitoring, vibration alarm
Product calibrations 200
Measured NIR Constituents 1, 2, or 3 Simultaneously
Moisture Accuracy +/- 0.1%
Fats/oil Accuracy +/- 0.2%
Wet Basis Moisture Range Min. 0.1% Max. 90%
Dry Basis Moisture Range Min. 0.1% Max. 400%
Transmitter/Product Distance 200-450 mm (8-18 in)

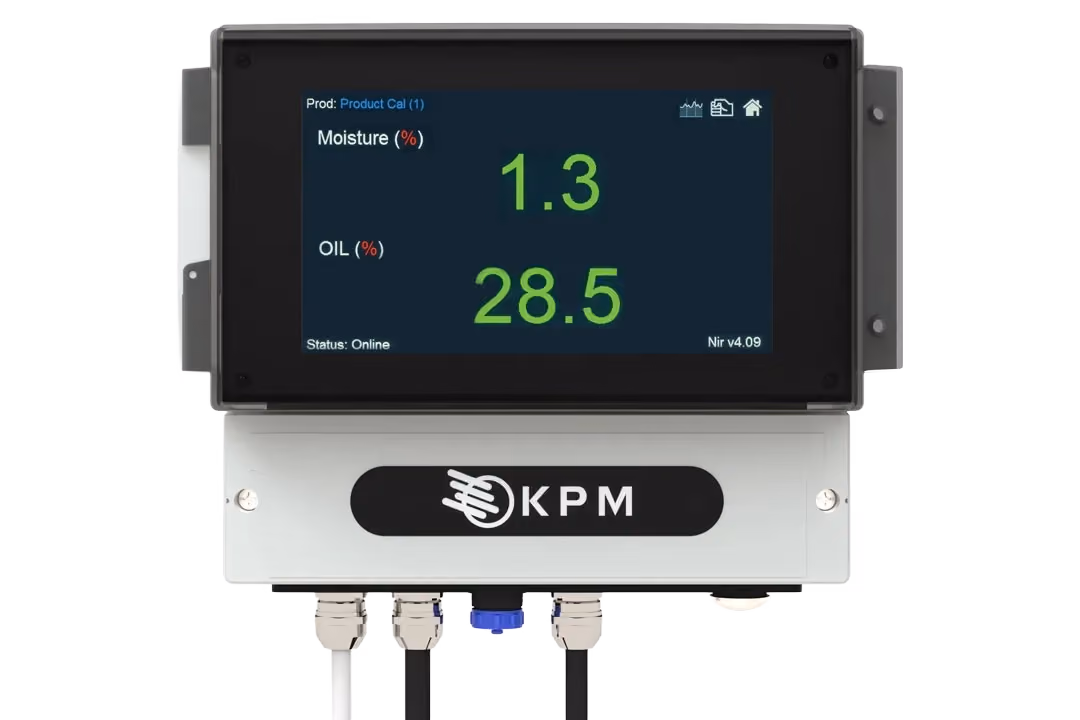

Operator Interface 178 mm (7 in) touch screen (IP67)
Outputs 4-20mA, 0-10V (isolated), RS-232 & RS485
Languages 13 selectable languages
Weight 8.6 kg (19 lbs)
Ambient Temperature 0-50°C (32-120°F) With Water or Air cooling Up To 80°C (160°F)
Power Inputs 110 to 240V standard. 24VDC optional
Cable 3 m (10 ft) standard
Compliance CE Certified (FCC CFR 47: Part 15: B: 2015, Industry Canada Interference-Causing Equipment Standard ICES-003: 2021)
Warranty Two years parts/labor; 5 years lamp replacement
