化学与临床

SmartChem®600 间断化学分析仪

SmartChem®600 间断化学分析仪

下载小册子

概述应用程序阵容它是如何运作的系统试剂软件规格资源服务与支持

产品概述

大容量地板模型自动湿化学平台

AMS Alliance SmartChem® 600 离散分析仪是一款全自动的湿化学直接读取平台，用于光度学和电化学分析。它专为寻求提高性能的要求苛刻的实验室而设计，每小时可进行多达 600 次测试，最多可容纳 200 个机载样本。

其连续装载能力使其成为希望在不影响质量和用户满意度的前提下减少人员日常工作量和提高生产力的实验室的理想工具。

了解科学界如何使用 SmartChem®：

国家生物技术信息中心： https://www.ncbi.nlm.nih.gov/pmc/?term=smartchem
谷歌学术： https://scholar.google.com/scholar?hl=en&as_sdt=0%2C5&q=smartchem+ams+alliance&btnG =

未找到任何物品。

特征

多参数（合并）自动化平台
光度学和电化学分析
自动集成试剂和样品条码读取器（可选）
自动启动仪器就绪
耗水量低
IF THEN 驱动的测试序列
可编程和受监控的比色皿清洗模块
试剂库存系统和液位传感
提供 pH/cond/ORP 和硝酸盐附加模块
可用于多种方法的即用试剂

好处

通过仪器整合和测试自动化提高效率和生产力。让您的员工摆脱繁琐和重复的任务。
微升反应-减少试剂使用量和废物产生-提高成本效率和环境足迹。
我们的即用型专用试剂可确保稳定性、可重复性和可追溯性。
借助我们的可选试剂和样品条形码读取器，提高了自动化水平，允许完全集成 LIMS。
自动超出范围的重新测试决策。
通过我们的 Cuvette 监控清洗周期，成本终结了环境效率。
优化 pH、Cond、ORP 等耗时技术。

化学与临床

应用程序

SmartChem® 600 广泛用于环境、工业和研究实验室中手动运行的湿化学测试的自动化，包括监管和质量控制测试。

其应用包括但不限于：

水与环境
土壤提取物、植物提取物和肥料
食物和饲料
饮料、葡萄酒和啤酒
化学

按细分市场查看我们的测试参数列表这里。（不限于）

未找到任何物品。

未找到任何物品。

未找到任何物品。

未找到任何物品。

化学与临床

产品阵容

SmartChem® 600

每小时最多 600 次测试（包括 120 次电化学测试（pH 值、电导率、氧化还原））
落地式分析仪
样品加载：
机上最多 200 个样品
约 2 个独立的旋转木马，可容纳 20 个机架，每个 10 个位置，用于连续装载样品
~机载试剂：最多 100 种试剂

未找到任何物品。

化学与临床

它是如何运作的

SmartChem® 600 使用直读光度法，利用真正的离散式直接读取测量系统和可重复使用的高纯度光学比色皿，从而消除了受损的样品测量。

SmartChem® 通过一系列简短的步骤简化实验室的工作：

在 SmartChem® 中加载样品和试剂
设置您的测试
在 SmartChem® 软件中加载您的工作程序
启动您的编程例程
获取结果

此外，每次使用后都会对SmartChem® 比色皿进行清洗，使其可用于下一次反应/测量，从而减少您对消耗品及其可用性的依赖。

化学与临床

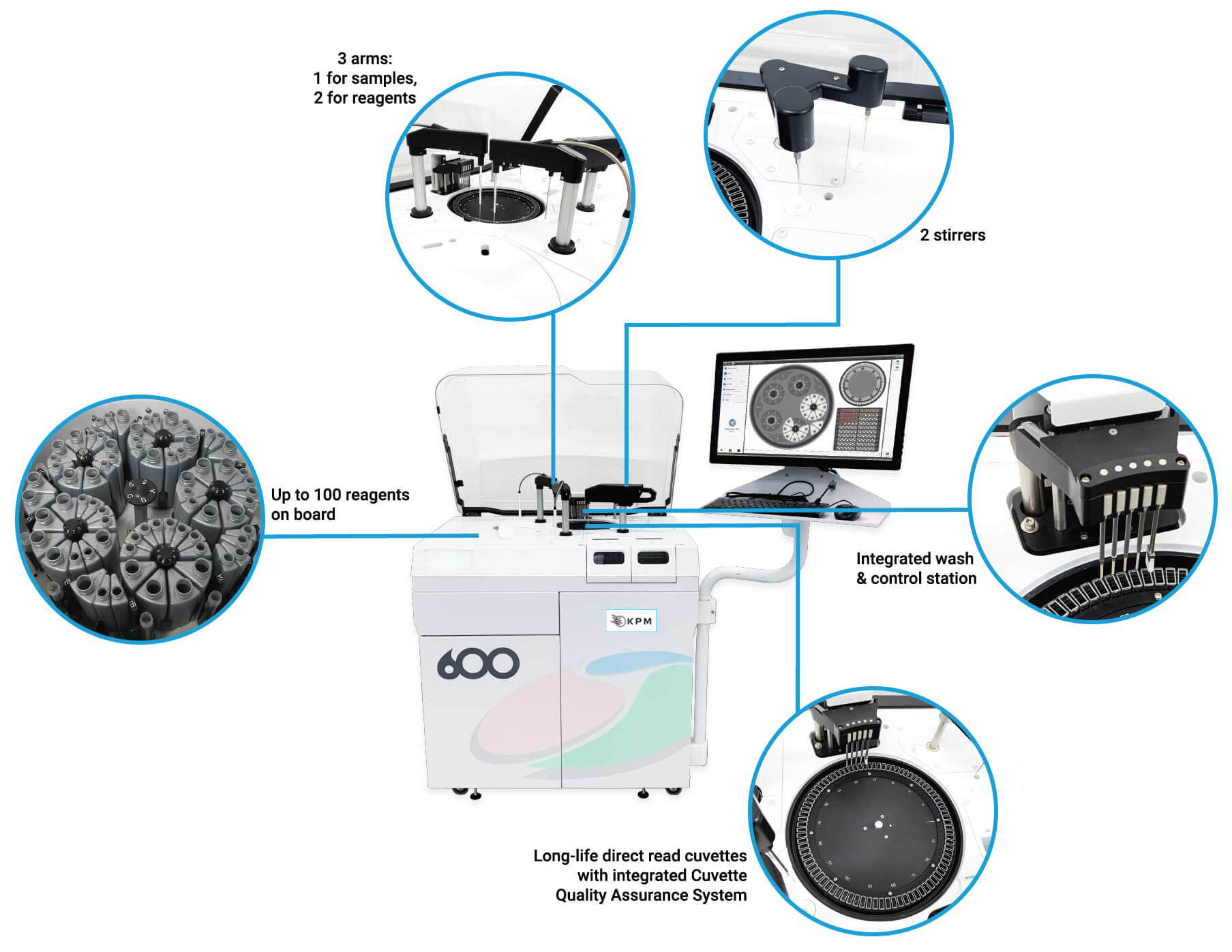

系统组件

SmartChem® 600 最多可装载 100 个试剂瓶，是一款真正多功能的分析仪，可实现实验室日常工作的自动化，让您的人员腾出时间来处理其他重要任务。

可用配置

SmartChem® 系统是模块化的，允许您配置分析。

Analytical Module	Only one option can be selected	NO3	Ph/Cond/ORP
Cuvette Material	Only one option can be selected	Technical Polymer	Technical Polymer
Sample Position		200
Barcode Reader	Integrated	Samples	Reagents

化学与临床

试剂

即用试剂

我们提供专用于我们的 SmartChem® 系列离散分析仪的全系列酶和比色试剂。

它们由我们的应用实验室开发、测试和验证，可确保您的分析具有完美的稳定性和可重复性。

它们非常易于使用，是液体，装在专为 SmartChem® 制造的特定瓶子中，并由条形码读取器（可选）自动检测。这种即用型解决方案可简化分析准备工作，并便于试剂的使用和存储。它还可以使用适合您的应用和仪器的试剂来确保您的分析安全。

要订购试剂，请发送电子邮件至 orders@kpmanalytics.com。

This is some text inside of a div block.

Accessories

Heading 1

Heading 2

Heading 3

Heading 4

Heading 5

Heading 6

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.

Block quote

Ordered list

Item 1
Item 2
Item 3

Unordered list

Item A
Item B
Item C

Bold text

Emphasis

^Superscript

_Subscript

Heading 1

Heading 2

Heading 3

Heading 4

Heading 5

Heading 6

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.

Block quote

Ordered list

Item 1
Item 2
Item 3

Unordered list

Item A
Item B
Item C

Bold text

Emphasis

^Superscript

_Subscript

Heading 1

Heading 2

Heading 3

Heading 4

Heading 5

Heading 6

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.

Block quote

Ordered list

Item 1
Item 2
Item 3

Unordered list

Item A
Item B
Item C

Bold text

Emphasis

^Superscript

_Subscript

No items found.

化学与临床

软件

未找到任何物品。

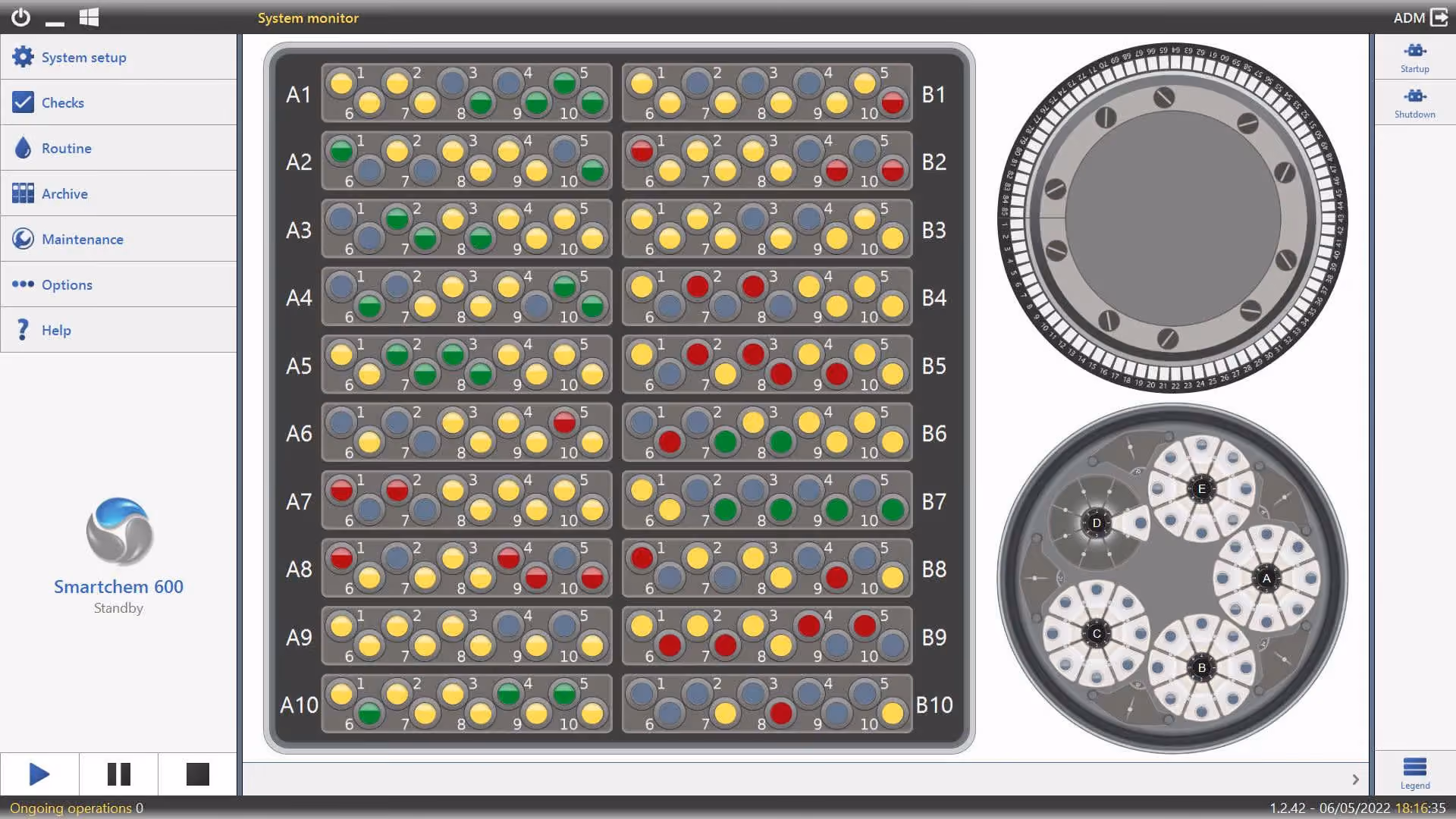

System Monitor

SmartChem® 600 software simplifies routine work and allows complete control and operation of the analyzer to the operator controlling the on-board reagent stock, samples, controls and calibrators, plus the status of the cuvettes in the reaction chamber.

System Monitor

SmartChem® 600 software simplifies routine work and allows complete control and operation of the analyzer to the operator controlling the on-board reagent stock, samples, controls and calibrators, plus the status of the cuvettes in the reaction chamber.

未找到任何物品。

Calibration Curve

Operators can access calibration status, use curves and historic calibration data, as well as monitor the status of specific tests, reaction curves and other on-going testing data.

Calibration Curve

Operators can access calibration status, use curves and historic calibration data, as well as monitor the status of specific tests, reaction curves and other on-going testing data.

未找到任何物品。

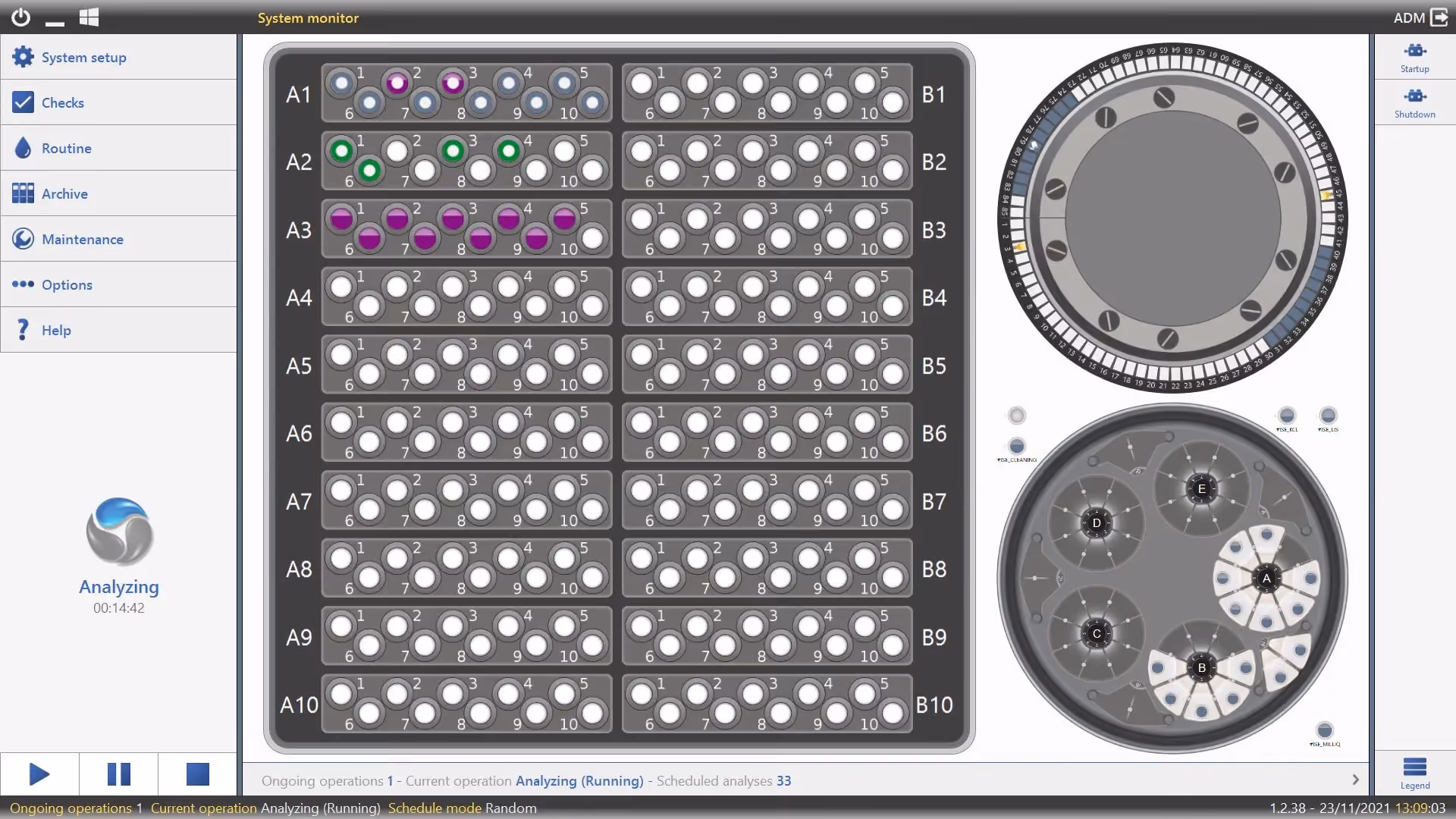

Ongoing Analysis

The operator can, at any moment, see the status of each sample, reagent content per bottle and other information during the programmed run, plus enter new reagents and samples while the unit is running an already launched program.

Ongoing Analysis

The operator can, at any moment, see the status of each sample, reagent content per bottle and other information during the programmed run, plus enter new reagents and samples while the unit is running an already launched program.

未找到任何物品。

Workplan Results

During and at the end of the routine, the operator can access the tests reports and results.

Workplan Results

During and at the end of the routine, the operator can access the tests reports and results.

未找到任何物品。

Levey-Jennings Graph

Quality controls can be evaluated via Levey-Jennings plots and results from the run can also be validated.

Levey-Jennings Graph

Quality controls can be evaluated via Levey-Jennings plots and results from the run can also be validated.

化学与临床

规格

Dimensions	Height x Width x Length: 96 x 70 x 120 cm (37.8 x 27.6 x 47.2 in.)
Weight	115 kg (254 lbs)
Power	430 Watts
Assay Type	End Point, Kinetic, Differential, Bi Chromatic Assays, Fully Programmable, pH, Conductivity, ORP
On-Board Reagents	Up to 100 Reagents can be Loaded into the Refrigerated Compartment and Distributed on: 5 Removable Racks (8 Main Positions) + 5 Satellites 100/50/25/5 mL Containers Reagents Barcode Reading (Integrated)
Sample Loading	Up to 200 Samples on Board 2 Independent Carousels Hosting 20 Racks of 10 Positions Each, for Continuous Sample Loading Cups and/or Tubes of 10-13 mm (0.4-0.5 in.); Maximum Height of 100 mm (3.9 in.) Sample Tube Camps for Sensitive Applications Sample Barcode Reading (Integrated)
Urgent Sample Analysis	Allowed at Any Time
Throughput	Up to 600 Tests/Hour (Including 120 for EC Tests)
Reading System	Direct Photometry Photometer: Diode Filter Array Wavelength: 12 Wavelengths Available from 340 nm to 880 nm Source: Halogen Lamp 6V/10W Optical Path: 10 mm Linear Range: 0.001 – 2.500 Abs Resolution: 0.0001 Abs
Minimum Reaction Volume	180 μl
Sampling System	3 Sampling Arms (1 for Samples and 2 for Reagents) 3 Shock Sensors 3 Capacitive Liquid Level Sensors 2 Positions for Stirrer/Mixer Automatic Probe Washing Sample Rerun with or without Dilution Limited Water Consumption (Less than 7 Liters/Hour)
Dilutor	Automatic Dilution in Pre- and Post-Dilution
Reaction Plate	Holds 85 Cuvettes that Perform the Following Operations: Automatic Cuvette Washing Incubation Temperature Control 37°C (98.6°F) +/- 0.3 Continuous Monitoring of Cuvette Quality Separate Waste Lines to Minimize Hazard Disposal Management Use of Washable Cuvettes (Green Technology)
Available Configurations	Analytical Module: NO3, pH/Cond/ORP Cuvette Material: Technical Polymer Sample Position: 200 Barcode Reader: Integrated, Samples, Reagents
Complementary Products	Ready-to-Use Reagents
